- Size: 2
- Place of Origin: CHINA
- Brand Name: HUAQUAN
- Model Number: YJD-200GF
- Weight: 12300.000 kg

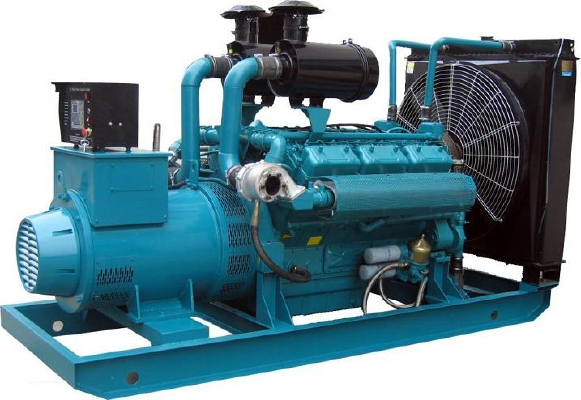

Open Type Diesel Generator Sets
Model | 1500 rmp/400v 3P 4W/50HZ/0.8F | Engine specifications | |||||||
PRP | STP | ||||||||
KVA | KW | KVA | KW | Engine Model | Fuel Cons(L/hr) | Rated output(KW) | Cylinder arrangement | Displacement(L) | |
WDW-62T5 | 62.5 | 50.0 | 68.8 | 55.0 | WP4D66E200 | 13.06 | 60 | L4 | 4.5 |
WDW-94T5 | 93.8 | 75.0 | 103.1 | 82.5 | WP4D100E200 | 17.82 | 90 | L6 | 4.5 |
WDW-113ST5 | N.A | N.A | 112.5 | 90.0 | WP4D108E200 | 21.38 | 108 | L6 | 4.5 |
WDW-125T5 | 125.0 | 100.0 | 137.5 | 110.0 | WP6D132E200 | 23.76 | 120 | L6 | 6.75 |
WDW-150T5 | 150.0 | 120.0 | 165.0 | 132.0 | WP6D152E200 | 27.32 | 138 | L6 | 6.75 |
DW-60T5 | 60.0 | 48.0 | 66.0 | 52.8 | BF4M2012 | 13.9 | 54.0 | L4 | 4.04 |
DW-70T5 | 70.0 | 56.0 | 77.0 | 61.6 | BF4M2012C | 18.3 | 71.0 | L4 | 4.04 |
DW-84T5 | 83.8 | 67.0 | 93.0 | 74.4 | BF4M1013E | 19.4 | 77.0 | L4 | 4.76 |
DW-100T5 | 100.0 | 80.0 | 110.0 | 88.0 | BF4M1013EC | 24.5 | 97.0 | L4 | 4.76 |
DW-125T5 | 125.0 | 100.0 | 137.5 | 110.0 | BF4M1013FC | 29.2 | 117.0 | L4 | 4.76 |
DW-148T5 | 147.5 | 118.0 | 164.0 | 131.2 | BF6M1013EC | 36.3 | 146.0 | L6 | 7.146 |
DW-180T5 | 180.0 | 144.0 | 198.0 | 158.4 | BF6M1013FCG2 | 41.1 | 166.0 | L6 | 7.146 |
DW-200T5 | 200.0 | 160.0 | 220.0 | 176.0 | BF6M1013FCG3 | 46.2 | 183.0 | L6 | 7.146 |
DW-235T5 | 235.0 | 188.0 | 258.5 | 206.8 | BF6M1015-LA GA | 50.7 | 208.0 | 6V | 11.906 |
DW-250T5 | 250.0 | 200.0 | 275.0 | 220.0 | BF6M1015C-LA G1A | 55.1 | 228.0 | 6V | 11.906 |
DW-280T5 | 280.0 | 224.0 | 308.0 | 246.4 | BF6M1015C-LA G2A | 61.8 | 256.0 | 6V | 11.906 |
DW-313T5 | 312.5 | 250.0 | 343.8 | 275.0 | BF6M1015C-LA G3A | 68.8 | 282.0 | 6V | 11.906 |
DW-350T5 | 350.0 | 280.0 | 385.0 | 308.0 | BF6M1015C-LA G4 | 74.9 | 310.0 | 6V | 11.906 |
DW-375T5 | 375.0 | 300.0 | 412.5 | 330.0 | BF6M1015CP-LA G | 80.0 | 328.0 | 6V | 11.906 |
DW-438T5 | 437.5 | 350.0 | 481.3 | 385.0 | BF8M1015C-LA G1A | 94.7 | 388.0 | 8V | 15.874 |
DW-455T5 | 455.0 | 364.0 | 500.5 | 400.4 | BF8M1015C-LA G2 | 99.5 | 408.0 | 8V | 15.874 |
DW-463T5 | 462.5 | 370.0 | 508.8 | 407.0 | BF8M1015CP-LA G1A | 100.8 | 413.0 | 8V | 15.874 |
DW-500T5 | 500.0 | 400.0 | 550.0 | 440.0 | BF8M1015CP-LA G2 | 110.9 | 448.0 | 8V | 15.874 |
DW-515T5 | 515.0 | 412.0 | 566.5 | 453.2 | BF8M1015CP-LA G3 | 113.4 | 458.0 | 8V | 15.874 |
DW-544T5 | 543.8 | 435.0 | 598.1 | 478.5 | BF8M1015CP-LA G4 | 117.6 | 482.0 | 8V | 15.874 |
DW-575T5 | 575.0 | 460.0 | 632.5 | 506.0 | BF8M1015CP-LA G5 | 124.2 | 509.0 | 8V | 15.874 |
HM-625T5 | 625.0 | 500.0 | 700.0 | 560.0 | TBD604BL6-2A | 117.6 | 482.0 | 8V | 15.9 |
HM-675T5 | 675.0 | 540.0 | 750.0 | 600.0 | TBD604BL6-2B | 124.2 | 509.0 | 8V | 15.9 |
HM-750T5 | 750.0 | 600.0 | 825.0 | 660.0 | TBD620L6-2A | 133.6 | 564.0 | L6 | 26.6 |
HM-800T5 | 800.0 | 640.0 | 887.5 | 710.0 | TBD620L6-2B | 146.6 | 622.0 | L6 | 26.6 |
HM-900T5 | 900.0 | 720.0 | 1000.0 | 800.0 | TBD620L6-2C | 191.5 | 813.0 | V8 | 35.4 |
HM-900T5 | 900.0 | 720.0 | 1000.0 | 800.0 | TBD620V8-2C | 197.5 | 834.0 | V8 | 35.4 |
HM-1000T5 | 1000.0 | 800.0 | 1125.0 | 900.0 | TBD620V8-2A | 205.3 | 880.0 | V8 | 35.4 |
HM-1125T5 | 1125.0 | 900.0 | 1250.0 | 1000.0 | TBD620V8-2B | 234.4 | 1005.0 | V8 | 35.4 |
HM-1250T5 | 1250.0 | 1000.0 | 1375.0 | 1100.0 | TBD620V12-2C | 263.5 | 1130.0 | V12 | 53.1 |
HM-1500T5 | 1500.0 | 1200.0 | 1650.0 | 1320.0 | TBD620V12-2B | 307.8 | 1320.0 | V12 | 53.1 |
HM-1625T5 | 1687.5 | 1350.0 | 1875.0 | 1500.0 | TBD620V12-2C | 339.3 | 1440.0 | V12 | 53.1 |
HM-1875T5 | 1875.0 | 1500.0 | 2062.5 | 1650.0 | TBD620V16-2C | 393.0 | 1668.0 | V16 | 70.8 |
HM-2000T5 | 2000.0 | 1600.0 | 2187.5 | 1750.0 | TBD620V16-2A | 410.5 | 1760.0 | V16 | 70.8 |
HM-2250T5 | 2250.0 | 1800.0 | 2500.0 | 2000.0 | TBD620V16-2B | 451.5 | 1936.0 | V16 | 70.8 |
HM-2500T5 | 2500.0 | 2000.0 | 2750.0 | 2200.0 | HND622V20-2A | 513.1 | 2200.0 | V20 | 70.8 |
HM-2813T5 | 2812.5 | 2250.0 | 3125.0 | 2500.0 | HND622V20-2B | 583.1 | 2500.0 | V20 | 70.8 |
HM-3125T5 | 3125.0 | 2500.0 | 3437.5 | 2750.0 | HND622V20-2C | 608.7 | 2610.0 | V20 | 70.8 |
Optional Accessories
1. ATS(Automatic Transfer Switch);
Which can start the diesel generator when the main power is off; when the main power comes back, it will shut down generator.
2. MCCB (Molded case circuit breaker);
It can protect the loading machine and the diesel generator.
3. Battery charger(float charger);
When the generator hasn't been used for long time, the batteries will be no power, in that way, you can't start the generator. But the battery charger can charge the batteries from main power.
4. Extra daily fuel tank;
It will be requested while the base fuel tank capacity is not enough for daily fuel consumption.
5. Paralleling system;
This system can make several generators work together and automatically distrubute the load according to set.
6. Remote Control Panel:
Which can control the generator by computer, if use a RS484 or RS232 digital cable to connect the generator to the computer
7. Water Separate(additional cooling system);
If the ambient temperature is too high, it will be harmful to the diesel generator. Fan and water cooling is not enough for radiate. The water separate system is much better for cooling, and the life of generator will be much longer.
Note:
- Controller: Deepsea, ComAp, Fortrust or Harsen for optional
- Alternator: Stamford, Leroy Somer, Marathon or Chinese top quality alternato for optional
- Generator set type: open-type, soundproof type or mobile type for optional
- We can design the diesel generator set as clients’ requirement
- Size: 2
- Place of Origin: CHINA
- Brand Name: HUAQUAN
- Model Number: YJD-200GF
- Weight: 12300.000 kg
