- Size: 2
- Place of Origin: CHINA
- Brand Name: HUAQUAN
- Model Number: YJD-200GF
- Weight: 12300.000 kg

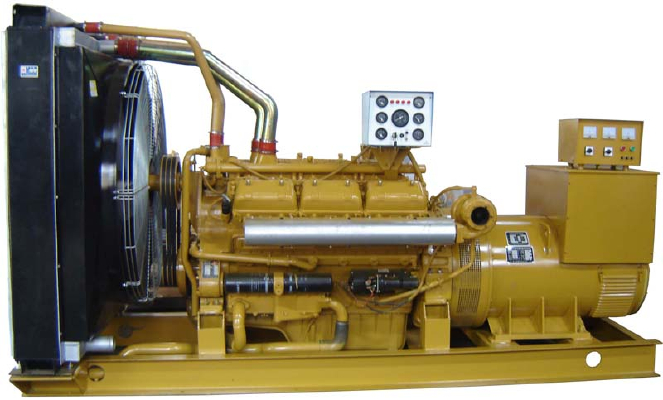

GOODS DESCRIPTION
| Technical data | |
| Genset Model | YJD-200GF |
| Genset Power | 200KW(250KVA) |
| Genset Voltage | 400V |
| Frequency | 50Hz |
| The factor of rated power | COS=0.8(lagging) |
| The regulating rate of steady voltage | ≤1% |
| The time of steady voltage | ≤1.5sec |
| The waving rate of voltage | ≤1.0% |
| The regulating rate of steady frequency | ≤3% |
| The regulating rate of instantaneous frequency | ≤±10% |
| The time of steady frequency | 3sec |
| The waving rate of frequency | ≤1% |
| Dimension of silent type(L×W×H)(mm): | 3300×1400×1950 |
| Gross weight of silent type(kg): | 3400 |
AMF Control Panel
AMF Control Panel ,the control panel is integrated from the start control panel. English language menu, LCD display; with a voltage, current, frequency, temperature, oil pressure display on the diesel engine has a high water temperature, low oil pressure, overspeed shutdown protection.
The features of soundproof
Silent diesel generator set combined adopt foreign technology and meticulous design; advanceddesign, varies kind. Here are some features as follows, Special and simple apperance design, obeythe ruel of gas flow inside the silent box , ensure the smooth heat exhausting , support a nicesurrounding for gensets running. The structure is compact, and can be removable. For the silent boxmaterial, we choose 2MM cold-rolled steel plate. You can find the door was sealed well, and 5CM highperformance sound-absorbing cotton. Besides, we choose special car paint,with antirust andwaterproof funtion. inside the box using large mufflers, and equipped with large-capacity base fueltank, in the left and right side, there are two door for maintenance, in the front box, it has viewingwindows and emergency stop button. Noise level, less than 75db at 7 meters.
